Pilot Cross Flow filtrasyon

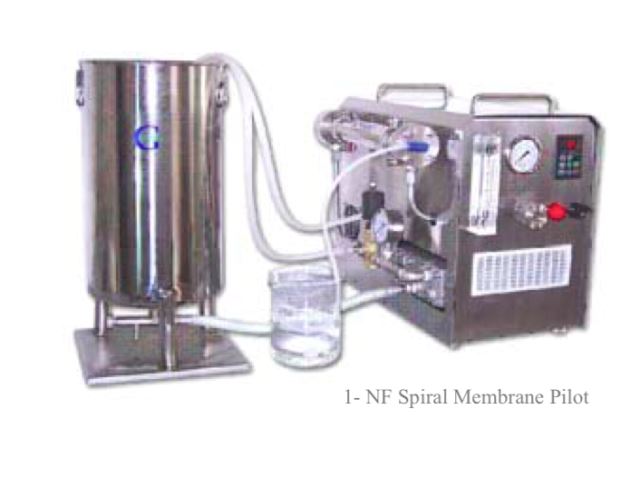

1- NF Spiral Membrane Pilot

Model: RNF-1812

Membrane Area : 0.2-0.4 m2

Power: 1.5Kw

Holding volume: 800ml

Pressure: 55bar

Flux: 2-30 L/Hr

Membrane: RO,150D,500D,3.5KD,8KD,10KD ,etc

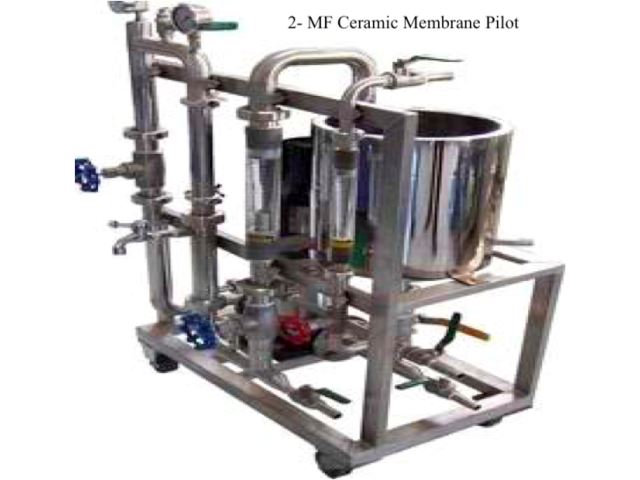

2- MF Ceramic Membrane Pilot

Model: CMP-01

Membrane Area: 0.1m2

Power: 0.5Kw

Holding volume: 8000ml

Pressure: 4.0bar

Water Flux: 50~100 L/Hr

Membrane: 0.5μm,0.2μm,0.1μm,0.05μm,20K,etc

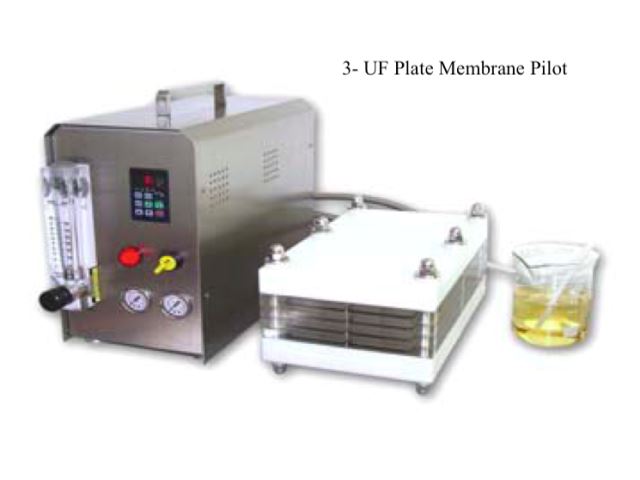

3- UF Plate Membrane Pilot

Model: FlowMem-025

Membrane Area: 0.25m2

Power: 1.5Kw

Holding volume: 1000ml

Pressure: 5.0bar

Water Flux: 2~30 L/Hr

Membrane: 5KD,10KD,20KD,100KD,0.1μm,etc

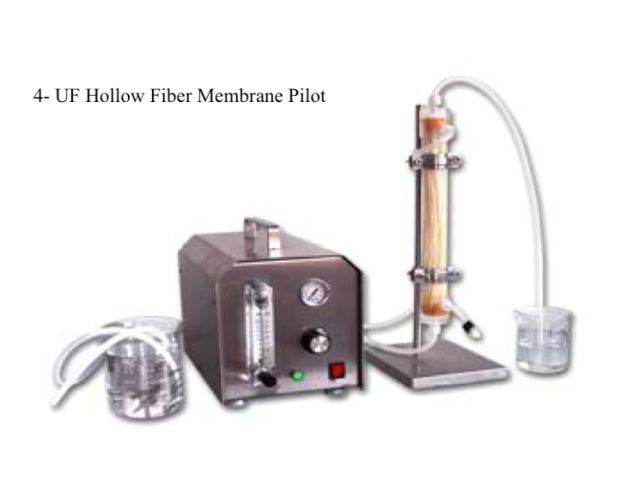

4- UF Hollow Fiber Membrane Pilot

Model: HFM-053

Membrane Area: 0.1-0.5m2

Power: 0.2Kw

Holding volume: 200ml

Pressure: 1.5bar

Water Flux 2~20L/Hr

Membrane: 5KD, 12KD,50KD,100KD,etc

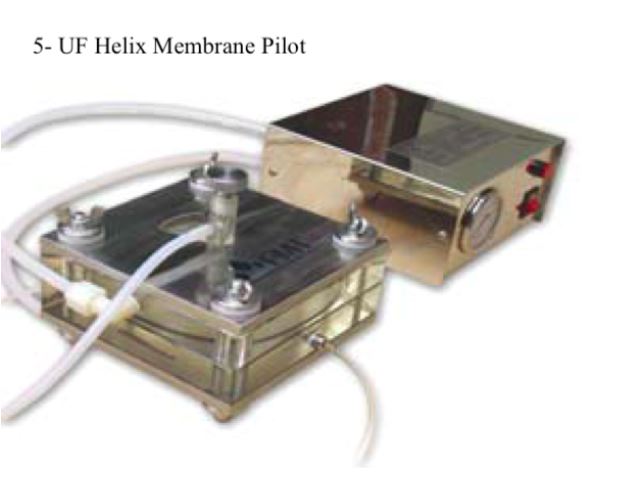

5- UF Helix Membrane Pilot

Model: HL-001

Membrane Area: 0.01 m2

Power: 0.06 Kw

Holding volume : 100 ml

Pressure: 5.0 bar

Water Flux: 0.2~3 L/Hr

Membrane: 5KD,10KD,20KD, 0.1 μm,etc
