Pliot Plant Glass Reactors

SOFTWARE FOR MONITORING AND CONTROLLING THE CHEMICAL PROCESS


Any pilot/laboratory plant can be equipped with a PLC programmable control system. The user now has a suitable software package in an interactive HMI (Human machine interface) for controlling and/or regulating the product temperature by re?circulating chiller, the vacuum level inside the glassware, the stirring speed and the opening and closing of valves. By measuring the pH in the product the user can create cascade operations (e.g. activate the peristaltic pump for the product loading). The HMI is made through a touch screen graphic display designed specifically for industrial plants, software is a standard option.


FEATURES

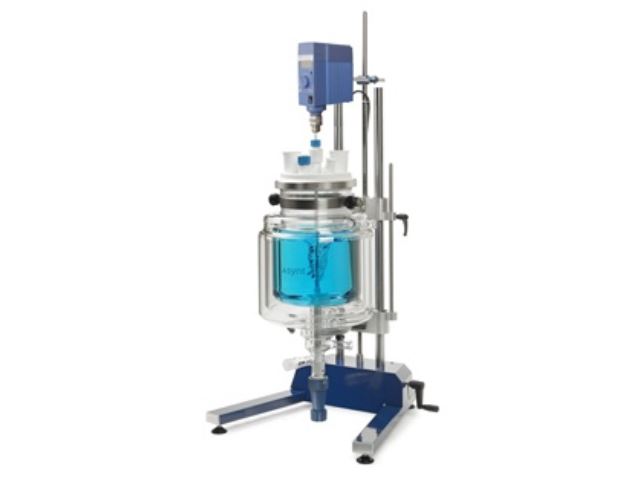

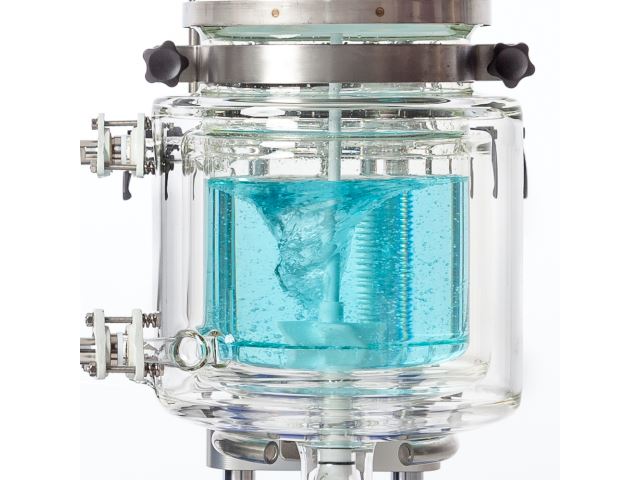

? 20 liter 3.3 borosilicate glass reactor, interchangeable, graduated, jacketed for thermal fluid recirculation

?1.0 to + 0.5 bar / ? 45 (?90) to + 200°C (extra low temperature achievable with triple wall jacketed vessels)

? 10...280 rpm continuous adjustable stirrer with a 0.22 kW 400Vac induction motor

? Dry running mechanical seal

? CE / GMP

? CIP capable

? Materials: 3.3 borosilicate Glass / PTFE / TFM in compliance with FDA and GMP directives and highly corrosive environment

? Bottom valve: borosilicate glass 3.3 and PTFE dead space free

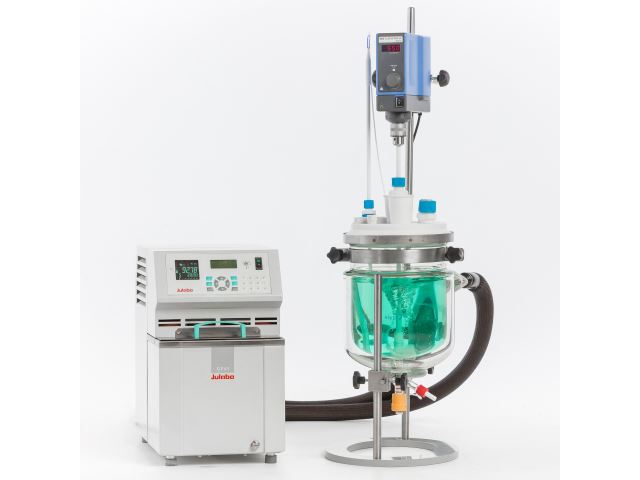

?Optional chiller/thermostat with PLC supervision FRAME

? 1" frame, stainless steel tubing, overall dimension 1680 X 2452 X 729mm high

? Laboratory fume hood for contained operations as optional


COVER PLATE

? DN80 fast?action closure for solids addition

? Standard version with flat flange connections

? Various options of connections available


GLASS OVERHEAD

Distillation overhead consisting of:

? 10 liter feed vessel

? Vapor duct with reflux splitter

? 0.3m2 coil heat exchanger

? 2x5 liter graduated glass receiver vessel

? Vacuum connection

? Nitrogen connection (0.4 Barg max)


STIRRER

? Interchangeable stirrers made of PTFE

? Blade stirrer made of solid PTFE

?Wide range of stirrer style


SENSOR AND CONTROLS

?Vacuum

?Product temperature,

?Vapor temperature,

?pH


SAFETY

?Rupture disk: 0.49Barg
